Request For Our Latest Prices On Hastelloy Stud Bolts in Kuala lumpur, Malaysia!

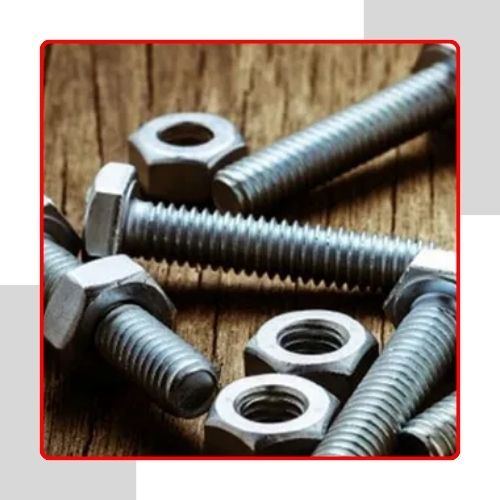

Mira Fasteners is a well-known producer and distributor of Hastelloy Stud Bolts in Kuala Lumpur, Malaysia. They manufacture these high-grade stud bolts using Hastelloy C276, C22, and similar nickel-based alloys to provide top-class corrosion protection as well as mechanical stability. Manufactured to meet high-temperature, high-pressure, and corrosive chemical conditions, our Hastelloy stud bolts are in accordance with ASTM B574 and DIN standards. Full thread, tap-end, and double-end stud bolts with accompanying nuts and washers are supplied by us for severe applications in oil & gas, marine, and chemical sectors.
Hastelloy Stud Bolts consist of nickel (55–65%), accompanied by chromium, molybdenum, iron, and cobalt. Hastelloy stud bolts provide high tensile strength (up to 785 MPa) and superior resistance against oxidizing/reducing chemicals and seawater. The bolts have mechanical integrity under cyclic temperatures and chemical stress. Mira Fasteners guarantees precision threading, surface finish, and mechanical uniformity for each batch of hastelloy stud bolts.
| Specifications | ASTM B574 / ASME SB574 |
|---|---|
| Fasteners size | Bolt / Screw Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Nuts Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Washers Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Machine Screws Size : M1.6 – M12 Self Tapping Screw Size : No.2 – No. 14 |
| Fasteners Length | 3 mm to 200 mm |
| Fastener Threads | UNF, BSW, BSF, METRIC, UNC or as required |
| Standard of High Nickel Alloy Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Hex nuts |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Surface Coating | Ptfe Coated High Nickel Alloy Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Fasteners Finishing | High Nickel Alloy : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), High Nickel Alloy, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide. |
| Grade | C | Mn | Si | Co | S | Ni | Cr | Fe | Mo | W | V | P |
| Hastelloy Fasteners | 0.010 max | 1.0 max | 0.08 max | 2.5 max | 0.03 max | Bal | 14.5 – 16.5 | 4 – 7 | 15 – 17 | 3 – 4.5 | 0.35 max | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy Fasteners | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
To satisfy our clients needs by providing high quality products at competitive price as per the schedule and to maintain long term relationship with our clients.
Hastelloy stud bolts are used in different high performance related applications and Mira Fasteners is providing it. In chemical processing they are able to manage exposure to aggressive chemicals and acids well. In aerospace, they offer reliable means of fastening in applications characterized by high temperature and pressure. In oil and gas industries, they protect against corrosive agents and severe conditions. Also, Hastelloy stud bolts are applied in power generation and marine industries due to their high strength and durability in harsh environments.
Mira Fasteners is a leading manufacturer and supplier of high-quality fasteners in Kuala lumpur, Malaysia, with over 8 years of experience serving global industries.
